REVIT TUTORIAL - Page 5 Empty REVIT TUTORIAL

Post by engel_hg Sun Jul 12, 2009 1:18 am

First topic message reminder :

HI GUYS MUSTA IM NEW HERE.. PANSIN KO LNG HEHEHE LA YATA REVIT TUTORIAL DITO Smile HMM IF THERE IS SOMEONE HAVE QUESTION IN REVIT MAYBE I CAN HELP YOU. PARA MAY MA SHARE NAMAN. THANKS

engel_hg
CGP Newbie
CGP Newbie

Number of posts : 124
Age : 43
Location : Sa lupa na aking sinilangan, PILIPINAS
Registration date : 06/07/2009

Back to top Go down


REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by archiphil2000 Sun Feb 05, 2012 10:27 am

mga master sa revit, pa-share naman po ng tips and tricks kung pano maglagay ng hatch pattern or floor tile pattern, for example sa toilet..TIA

archiphil2000
CGP Newbie
CGP Newbie

Number of posts : 186
Registration date : 26/08/2010

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by engel_hg Sun Feb 05, 2012 6:46 pm

archiphil2000 wrote:mga master sa revit, pa-share naman po ng tips and tricks kung pano maglagay ng hatch pattern or floor tile pattern, for example sa toilet..TIA



Sir good morning, regarding sa question mo. create ka lng ng new material then lagyan mo lng ng surface pattern. under "fill patterns" dialog box. choose the pattern type "Model" you can add and customize only the size of cross hatch but you can also add some hatch pattern na galing sa autocad. pwede ka rin mag download sa revitcity ng mga pattern. then pag ok na yung material mo. apply mo lng sa floor or sa wall. ok na yun. pwede mo rin align ang cross hatch pattern. basta always remeber use only model type. REVIT TUTORIAL - Page 5 290602

engel_hg

engel_hg
CGP Newbie
CGP Newbie

Number of posts : 124
Age : 43
Location : Sa lupa na aking sinilangan, PILIPINAS
Registration date : 06/07/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by archiphil2000 Mon Feb 06, 2012 9:05 am

salamat sir engel_hg for the quick reply..follow question lang, pasensiya na po, newbie lang sa revit kc...pwede bang ma-hide yung surface(hatch) pattern below furnitures or fixtures gaya sa autocad if we are using masking or wipeout..?thanks po ulit
archiphil2000
archiphil2000
CGP Newbie
CGP Newbie

Number of posts : 186
Age : 45
Location : mula sa Perlas ng Silangan napadpad sa Gitnang Silangan
Registration date : 26/08/2010

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by engel_hg Mon Feb 13, 2012 7:02 pm

archiphil2000 wrote:salamat sir engel_hg for the quick reply..follow question lang, pasensiya na po, newbie lang sa revit kc...pwede bang ma-hide yung surface(hatch) pattern below furnitures or fixtures gaya sa autocad if we are using masking or wipeout..?thanks po ulit



Sorry for the late Reply, yes pwede using the "masking region" under the annotation tab pwede ka rin mag lagay nyan sa Family. and you can also control the visibility of your model under ng edit mode ng element, sample top of the table click mo sya then makikita mo yung "visibility setting" you can check the the detail level. para lalabas lng sya specific na option na assign mo sa detail level..REVIT TUTORIAL - Page 5 290602

engel_hg
CGP Newbie
CGP Newbie

Number of posts : 124
Age : 43
Location : Sa lupa na aking sinilangan, PILIPINAS
Registration date : 06/07/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by SHOGUN Fri Mar 16, 2012 8:56 am

ahhh... nahilo ako sa usapan nu.... but.. anyway welcome sir engel.... very much interested ako to learn revit... kaya binasa ko lahat ng palitan nu ng usapan...sana makapag post ka ng begginers tutorial...very much appreciated...coming from experts... at 'noypi pa !! i'm proud !!
SHOGUN
SHOGUN
CGP Newbie
CGP Newbie

Number of posts : 7
Age : 62
Registration date : 15/03/2012

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by axel Fri Mar 16, 2012 9:00 am

how to load families..ex. door families..etc.. downloadable din ba mga sir then install sa revit. thanks
axel
axel
CGP Apprentice
CGP Apprentice

Number of posts : 256
Location : Nueva Ecija/Dubai
Registration date : 13/12/2008

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by engel_hg Sat Mar 17, 2012 2:12 am

axel wrote:how to load families..ex. door families..etc.. downloadable din ba mga sir then install sa revit. thanks

Just open the family then, under the "family Editor" click > Load into the project.

You can also download family AT www.revitcity.com or use the autodesk seek under >insert > autodesk seek panel. REVIT TUTORIAL - Page 5 290602

engel_hg
CGP Newbie
CGP Newbie

Number of posts : 124
Age : 43
Location : Sa lupa na aking sinilangan, PILIPINAS
Registration date : 06/07/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by axel Sat Mar 17, 2012 8:31 am

engel_hg wrote:
axel wrote:how to load families..ex. door families..etc.. downloadable din ba mga sir then install sa revit. thanks

Just open the family then, under the "family Editor" click > Load into the project.

You can also download family AT www.revitcity.com or use the autodesk seek under >insert > autodesk seek panel. REVIT TUTORIAL - Page 5 290602

can you show some snap shots sir how to.. may mga defaults ba sir na mga families like door, etc.... sa new installed revit architecture 2012
axel
axel
CGP Apprentice
CGP Apprentice

Number of posts : 256
Location : Nueva Ecija/Dubai
Registration date : 13/12/2008

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by engel_hg Mon Mar 19, 2012 11:03 pm

axel wrote:
engel_hg wrote:
axel wrote:how to load families..ex. door families..etc.. downloadable din ba mga sir then install sa revit. thanks

Just open the family then, under the "family Editor" click > Load into the project.

You can also download family AT www.revitcity.com or use the autodesk seek under >insert > autodesk seek panel. REVIT TUTORIAL - Page 5 290602

can you show some snap shots sir how to.. may mga defaults ba sir na mga families like door, etc.... sa new installed revit architecture 2012


Hi sir good day. regarding sa question mo yes. meron default na family ang Revit. pero sayo wala? in that case yung pag install mo is kulang. pag mabilis lng yung program lng talaga ang na install mo. kailgan kasi connected ka sa internet. yung library nya kasi upon installation dina-download nya yun kaya matagal.

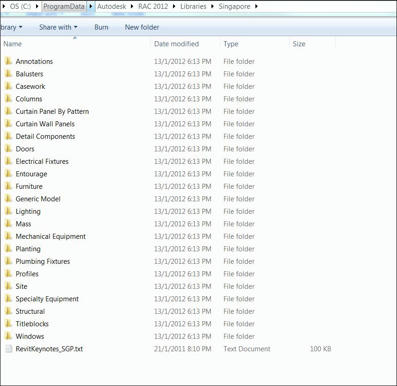

Default Library location:C:\ProgramData\Autodesk\RAC 2012\Libraries\Metric Library

REVIT TUTORIAL - Page 5 A15c4935dfe9bf80d8dff649b0f89361adc2e19f3f51750013e54cc64ed9fc504g

Dapat meron kang ganyan pag na install ng maayos ang revit.

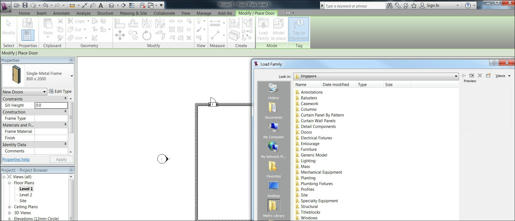

How to load a family:

First select category Sample door> under home panel select door> automatic lalabas ang mga option para sa door: under properties may drop down panel then you can select yung type ng door na loaded na. pero kung wala use "LOAD FAMILY" as shown in the image.

REVIT TUTORIAL - Page 5 5d70e4441adea87d05239e565d9c9e28037809c5e26940b0ca7d4515c3870bf64g

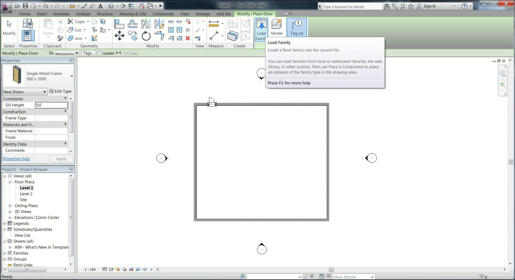

Lalabas ang load family Dialog box

REVIT TUTORIAL - Page 5 F5bb6020b2c2e8eb81ee041e50cbb07f256ce4154afa354579cbd2e3f4c268db4g

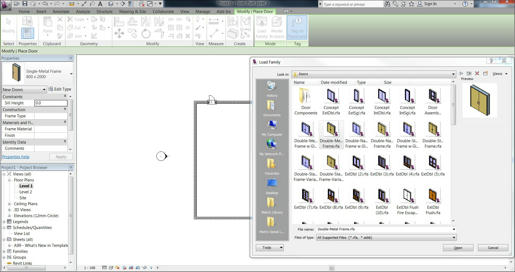

Go to >Door Folder

REVIT TUTORIAL - Page 5 Df821f2f4b6f30fefa67663ed4a72a634b612dfdc3bf2cc7247c90460d4fdb0b4g

Select lang kung anong type ng door, pag naka pili kana. click mo lang yung >Open loaded na yun sa project pwede mo na sya agad gamitin. yung size pwede mo adjust sa type properties pero always use duplicate para hindi ma overwright yung ibng type.

that's all.


OT: you can also add us on Facebook:PhilRUG - Philippines Revit User Group thumbsup

Location mo pla sir?

engel_hg
CGP Newbie
CGP Newbie

Number of posts : 124
Age : 43
Location : Sa lupa na aking sinilangan, PILIPINAS
Registration date : 06/07/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by ANGELBALILZ Tue Apr 10, 2012 8:00 am

helow,.. working aq gamit namin revit,.. aq arki discipline hawak q,.. for clashes purpose ng revit samin hehe,.. gumgawa din aq families na fexible na,.. kaso nd koh alam kung tama paggamit nmin para kcing may maibbubuga pa revit...hingi aq advaced revit tutorials kung pwede,.. salamat
ANGELBALILZ
ANGELBALILZ
CGP Newbie
CGP Newbie

Number of posts : 7
Age : 36
Location : pampanga
Registration date : 10/04/2012

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by TheGreatIam Sun May 20, 2012 8:24 pm

ewan ko lang kung may nagpost na...

yung may mga sub contractor na auto cad drawings at shop detail drawings pwede nyo pa din gamitin sa revit...thru drafting view

papaano gawin to?



VIEW >> drafting view
set nyo yung name

set nyo yung scale

then puntahan nyo yung newly created drafting view

INSERT >> Import CAD

then before iimport wag basta iimport paki check yung sa ilalim

layers >> VISIBLE >> INVERT

Units >> pwedeng automatic or kung may specified kayong units indicate nalang

Scale >> kung ano ang scale nang drafting view..yun din scale nang import sa options nang insert cad sa revit

then after import

balik kayo sa PLAN

VIEW >> CALL OUT (drag a box lang ang creation neto sa idedetail nyong part nang plan)

then sa GREEN BAR or Upper Left bar sa may properties dialog box

may makikita kayong in REFERENCE TO >> then lagay nyo yung DRAFTING VIEW na nirerefer nyo..



then ayun may detail na kayo...



*PS kahit saan nyo ilipat yung callout view...once na nairight click then go to view...dun pa rin kayo rerekta sa detail na inimport nyo



hehehe sana makatulong sa mga masters

TheGreatIam
CGP Newbie
CGP Newbie

Number of posts : 155
Age : 35
Location : Singapore
Registration date : 03/08/2010

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by arkitektongmanhid Fri Jun 01, 2012 3:42 am

www.revitcity.com for free revit models....
arkitektongmanhid
arkitektongmanhid
CGP Newbie
CGP Newbie

Number of posts : 17
Age : 44
Location : Quezon city
Registration date : 08/09/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by arkitektongmanhid Fri Jun 01, 2012 3:44 am

pwede din maglink ng mga CAD file to Revit files... insert link lang nyo.. for 2D draftings.. or if gusto nyo ilipat yung 2D plans nyo into revit model.. we do that sa mga old CAD files namin para makita ng client at boss namin yung model...
arkitektongmanhid
arkitektongmanhid
CGP Newbie
CGP Newbie

Number of posts : 17
Age : 44
Location : Quezon city
Registration date : 08/09/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by quel Sat Jun 02, 2012 8:36 am

Sir engel_hg, tanong ko lng kung kasing ganda din ng output ng 3d max ung render sa revit.? wala pa kc ako idea about sa revit eh. thanks
quel
quel
CGP Newbie
CGP Newbie

Number of posts : 43
Age : 43
Location : Nueva Ecija
Registration date : 30/07/2011

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by engel_hg Sat Jun 02, 2012 11:02 am

quel wrote:Sir engel_hg, tanong ko lng kung kasing ganda din ng output ng 3d max ung render sa revit.? wala pa kc ako idea about sa revit eh. thanks


Hi quel, well it depends kung anong render engine ang gamit mo. Revit using mental ray kaya kung ang gamit mo sa 3Dmax ay Mental Ray halos parihas lng, pero mas matagal ang rendering time sa Revit, not like 3DMax, at syempre pag ginamit mo pa Vray mas maganda ang output ng 3Dmax not like Revit. hindi naman kasi talaga rendering tool ang revit part lng ng revit yun just for simple presentation of your Design.

engel_hg
CGP Newbie
CGP Newbie

Number of posts : 124
Age : 43
Location : Sa lupa na aking sinilangan, PILIPINAS
Registration date : 06/07/2009

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by quel Mon Jun 04, 2012 9:28 pm

engel_hg wrote:
quel wrote:Sir engel_hg, tanong ko lng kung kasing ganda din ng output ng 3d max ung render sa revit.? wala pa kc ako idea about sa revit eh. thanks


Hi quel, well it depends kung anong render engine ang gamit mo. Revit using mental ray kaya kung ang gamit mo sa 3Dmax ay Mental Ray halos parihas lng, pero mas matagal ang rendering time sa Revit, not like 3DMax, at syempre pag ginamit mo pa Vray mas maganda ang output ng 3Dmax not like Revit. hindi naman kasi talaga rendering tool ang revit part lng ng revit yun just for simple presentation of your Design.

ok sir, salamat sa information...
quel
quel
CGP Newbie
CGP Newbie

Number of posts : 43
Age : 43
Location : Nueva Ecija
Registration date : 30/07/2011

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Revit Tutorial

Post by PinoyAZ Fri Jun 22, 2012 9:04 pm

Buti na lang sir may mga Revit colleagues tayo rito. Been using AutoCAD for a while pero exciting etong Revit at medyo complicated...Ok ito kasi may mga questions ako about the program.

PinoyAZ
CGP Newbie
CGP Newbie

Number of posts : 14
Age : 44
Location : Phoenix, AZ
Registration date : 05/04/2012

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by PinoyAZ Fri Jun 22, 2012 9:12 pm

mga sir baguhan ako sa Revit...paano po ung gumawa ng baseboard then how put also in family? in details sana mga sir..thanks!

PinoyAZ
CGP Newbie
CGP Newbie

Number of posts : 14
Age : 44
Location : Phoenix, AZ
Registration date : 05/04/2012

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by tochep Sat Jun 30, 2012 12:42 am

im actually interested with revit pero nagkakaproblema aq instalation may sekreto ba installation nun. gusto ko sana mag self study ng revit.
thanks.........

tochep

Number of posts : 2
Age : 40
Location : santiago city
Registration date : 31/05/2012

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by markitekdesign Sat Jun 30, 2012 1:17 am

2thumbsup


Last edited by markitekdesign on Sat Jun 30, 2012 1:20 am; edited 1 time in total
markitekdesign
markitekdesign
Revit Master
Revit Master

Number of posts : 2398
Age : 43
Location : Ortigas,Shinjuku-ku Tokyo,E.Samar
Registration date : 23/06/2009

https://www.facebook.com/pages/MarkitekDesign/206738446066181

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by markitekdesign Sat Jun 30, 2012 1:20 am

PinoyAZ wrote:mga sir baguhan ako sa Revit...paano po ung gumawa ng baseboard then how put also in family? in details sana mga sir..thanks!

how to create profile sweep
=go to modify<=click create <=then open the family category and parameters
<=click casework<=click OK<=rename it or just ignore it then click OK<=
go to solid form<=click solid sweep<=Pick path<=then click the bottom of the wall as your reference to make your baseboard<=click
finish path<=go to Edit by sketch<=go to the south view of your elevation
<=click the line and that's the time you will create your own design as your baseboard<=after you done designing your own baseboard<=click finish profile..Thats it..

=how to put a family to your project,just click the component then open the family,after you open the family load into project..Thats it. 2thumbsup
markitekdesign
markitekdesign
Revit Master
Revit Master

Number of posts : 2398
Age : 43
Location : Ortigas,Shinjuku-ku Tokyo,E.Samar
Registration date : 23/06/2009

https://www.facebook.com/pages/MarkitekDesign/206738446066181

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by markitekdesign Sat Jun 30, 2012 1:23 am

tochep wrote:im actually interested with revit pero nagkakaproblema aq instalation may sekreto ba installation nun. gusto ko sana mag self study ng revit.
thanks.........


walang problema sa installation,basta read the manual,at bawal dito ang piracy pag usapan ha...may mga free download sa autodesk na pwede mong gamitin.goodluck
markitekdesign
markitekdesign
Revit Master
Revit Master

Number of posts : 2398
Age : 43
Location : Ortigas,Shinjuku-ku Tokyo,E.Samar
Registration date : 23/06/2009

https://www.facebook.com/pages/MarkitekDesign/206738446066181

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by zagvot Sat Jun 30, 2012 8:22 pm

meh video ako nito kaso bawal naman siguro epost kasi na download ko yun sa torrent ... (lynda) yung site

pag aaralan ko to pag meh time talaga ako
zagvot
zagvot
CGP Newbie
CGP Newbie

Number of posts : 91
Age : 35
Location : surigao city
Registration date : 27/12/2011

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by markitekdesign Sun Jul 01, 2012 7:14 pm

zagvot wrote:meh video ako nito kaso bawal naman siguro epost kasi na download ko yun sa torrent ... (lyn$a) yung site

pag aaralan ko to pag meh time talaga ako



bro wag natin paguusapan dito yong mga torrent nayan or piracy,,pwede rito ang video basta video nang tutorial ng revit. 2thumbsup
markitekdesign
markitekdesign
Revit Master
Revit Master

Number of posts : 2398
Age : 43
Location : Ortigas,Shinjuku-ku Tokyo,E.Samar
Registration date : 23/06/2009

https://www.facebook.com/pages/MarkitekDesign/206738446066181

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by TheGreatIam Tue Aug 07, 2012 1:50 am

@zagvot

sir meron free PDF sa web...babasahin mo lang...: )

matututo kana in a day

@markitek

sir kamusta?balik Pinas na?pasensya na sir...wala ako nagawa

TheGreatIam
CGP Newbie
CGP Newbie

Number of posts : 155
Age : 35
Location : Singapore
Registration date : 03/08/2010

Back to top Go down

REVIT TUTORIAL - Page 5 Empty Re: REVIT TUTORIAL

Post by zagvot Tue Aug 07, 2012 9:28 pm

TheGreatIam wrote:@zagvot

sir meron free PDF sa web...babasahin mo lang...: )

matututo kana in a day

@markitek

sir kamusta?balik Pinas na?pasensya na sir...wala ako nagawa

oo nga sir meron salamat sa paalala
medyo busy sa work kaya di maka focus sa revit
zagvot
zagvot
CGP Newbie
CGP Newbie

Number of posts : 91
Age : 35
Location : surigao city
Registration date : 27/12/2011

Back to top Go down
